ROTARY TILLER
MAXIMO & MAXIMO PLUS SERIES
Lancer Rotary Tiller (Rotavator) MAXIMO & MAXIMO PLUS Series is Extra Large Range. This series is a heavy duty machine and has greater working width, so it is suitable for large scale farmers. Rigid structure and better support helps in deep tillage, as compared to other rotary tillers.
Standard Equipment
- Multi Speed Gear Box.
- C Type Blade, (80 x 8, ⦰ 14.5 x 57)
- Gear Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat II & III .
- Adjustable Depth Skid .
- Adjustable Lifting Bracket
- Advanced Tool Kit
- 19X21 Spur Gear, 205 Rotor RPM
- Close Rotor
Technical Chart
Features
On Request
Technical Chart
| Model | Working Width MM |
Power Requirement KW HP |
THREE POINT HITCH |
Working Depth (mm) |
No. of Blades |
Weight KG LBS |
Overall Width x Height x Length |
||
|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
|||
| MAXIMO 155 | 1600 | 34 – 75 | 45 – 100 | Cat-II | 250 | 36 | 630 | 1389 | 1730 x 1280 x 1050 |
| MAXIMO 180 | 1850 | 37 – 75 | 50 – 100 | Cat-II | 250 | 42 | 680 | 1499 | 1980 x 1280 x 1050 |
| MAXIMO 205 | 2100 | 45 – 75 | 60 – 100 | Cat-II | 250 | 48 | 730 | 1610 | 2230 x 1280 x 1050 |
| MAXIMO 230 | 2350 | 52 – 75 | 70 – 100 | Cat-II | 250 | 54 | 780 | 1720 | 2480 x 1280 x 1050 |
| MAXIMO PLUS 155 | 1600 | 34 – 75 | 45 – 100 | Cat-II | 270 | 36 | 690 | 1521 | 1730 x 1280 x 1050 |
| MAXIMO PLUS 180 | 1850 | 37 – 75 | 50 – 100 | Cat-II | 270 | 42 | 725 | 1599 | 1980 x 1280 x 1050 |
| MAXIMO PLUS 205 | 2100 | 45 – 75 | 60 – 100 | Cat-II | 270 | 48 | 775 | 1709 | 2230 x 1280 x 1050 |
| MAXIMO PLUS 230 | 2350 | 52 – 75 | 70 – 100 | Cat-II | 270 | 54 | 815 | 1797 | 2480 x 1280 x 1050 |
Features

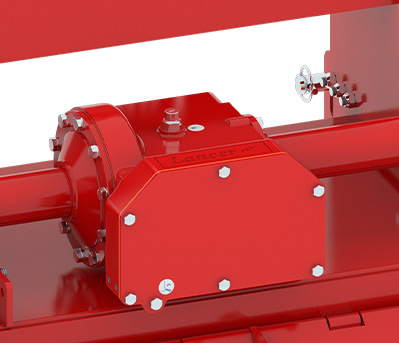

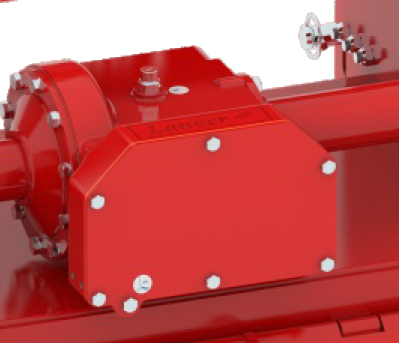

Heavy Duty Multi Speed Gear Drive

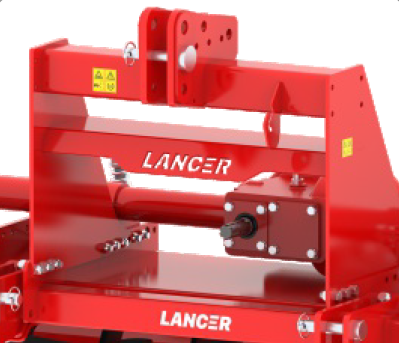

Rigid and Strong Three Point Hitch

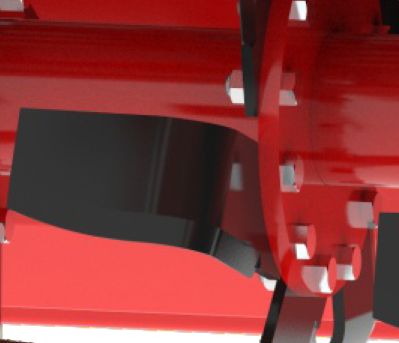

Premium Blade

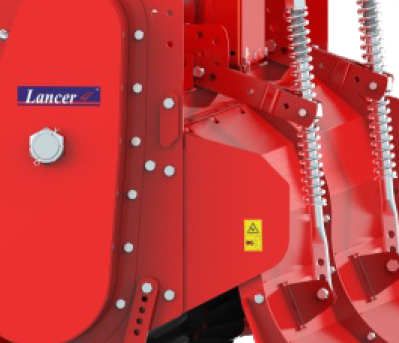

Heavy Duty Side Transmission Gear Drive with Extra Width
Heavy Duty Hull, Square Pipe and Side Plate

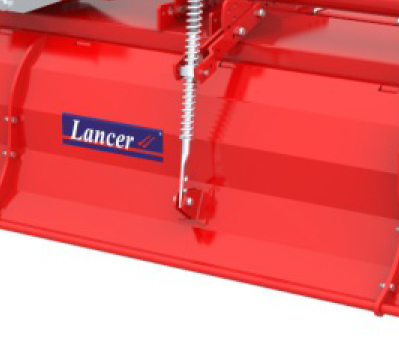

Extra Rigid Backguard with Extension
Side Protection
CE Guard
Mechanical Oil Seal in Rotor Hub

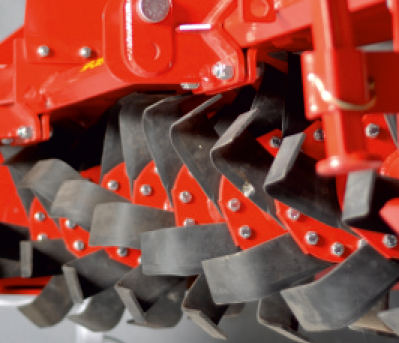

Helical Shape of Rotor Blades
On Request
- Shear Bolt / Slip Clutch PTO Shaft
- Spur Gear Pair According to RPM Chart
- CE PTO Guard
- Double Flange
- Cage Roller
- Packer Roller
- Smooth Roller
All Rotary Tiller
- Model : 80
- Require HP : 18 to 25
- Require KW: 13 to 19
- Model : 105-125-145-165-185-205
- Require HP :24 To 60
- Require KW : 18 to 44
- Model : 105-125-145-165-185-205
- Require HP :18 to 55
- Require KW : 30 to 41
- Model : 125-155-180-200-230-255-280
- Require HP : 30 to 85
- Require KW : 22 to 63
- Model : 200-220-240-260
- Require HP : 35 to 60
- Require KW : 26 to 44
- Model : 155-180-200-230-255-280
- Require HP :40 to 90
- Require KW : 29 to 60
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
- Model : 80-90-100-120
- Require HP : 10 to 25
- Require KW: 7 to 18
- Model : 155-180-200-230
- Require HP : 45 to 85
- Require KW : 33 to 63
