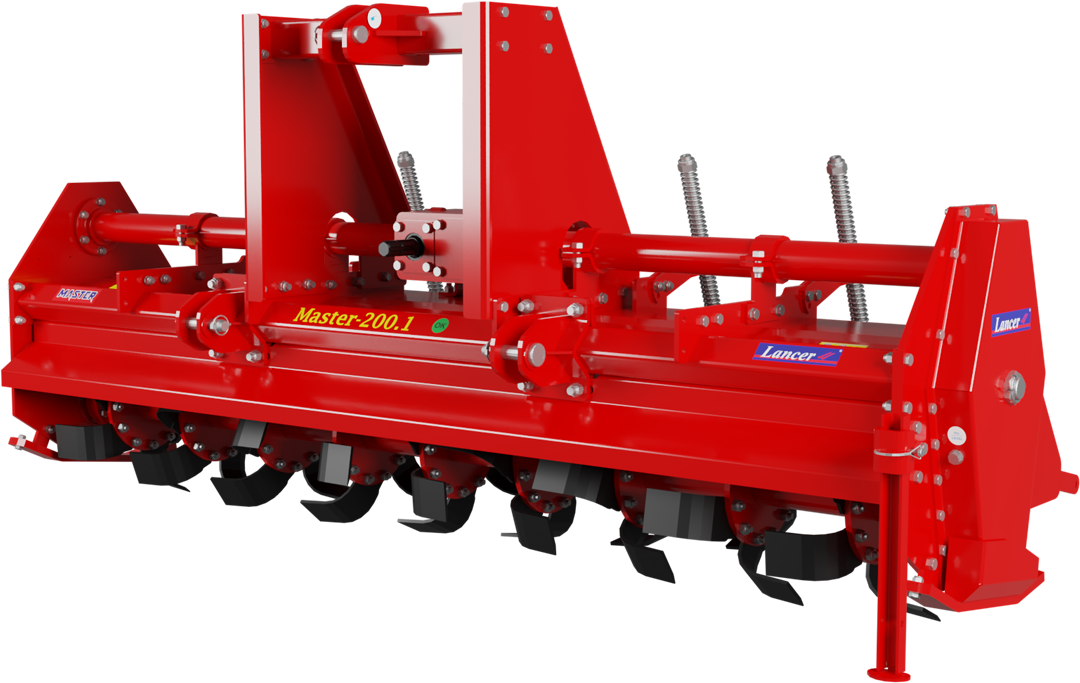

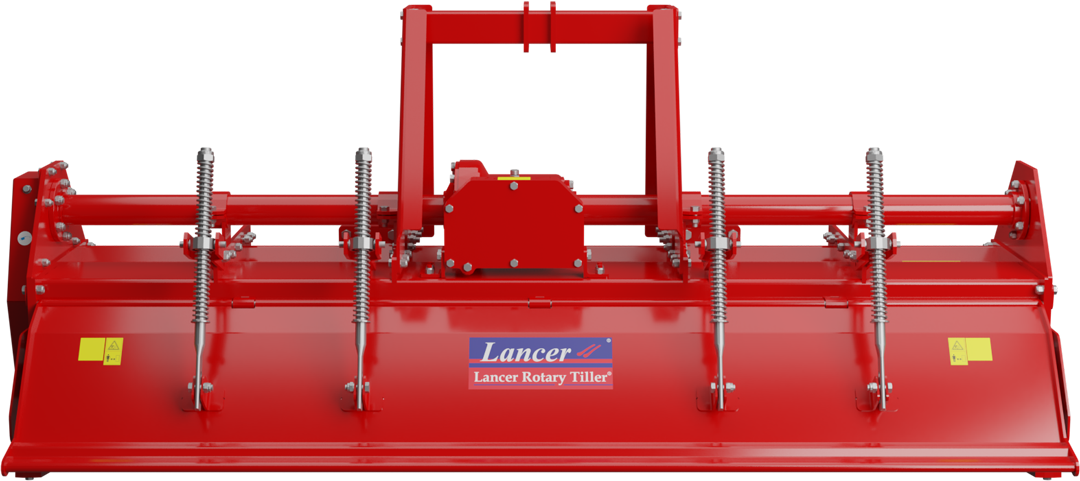

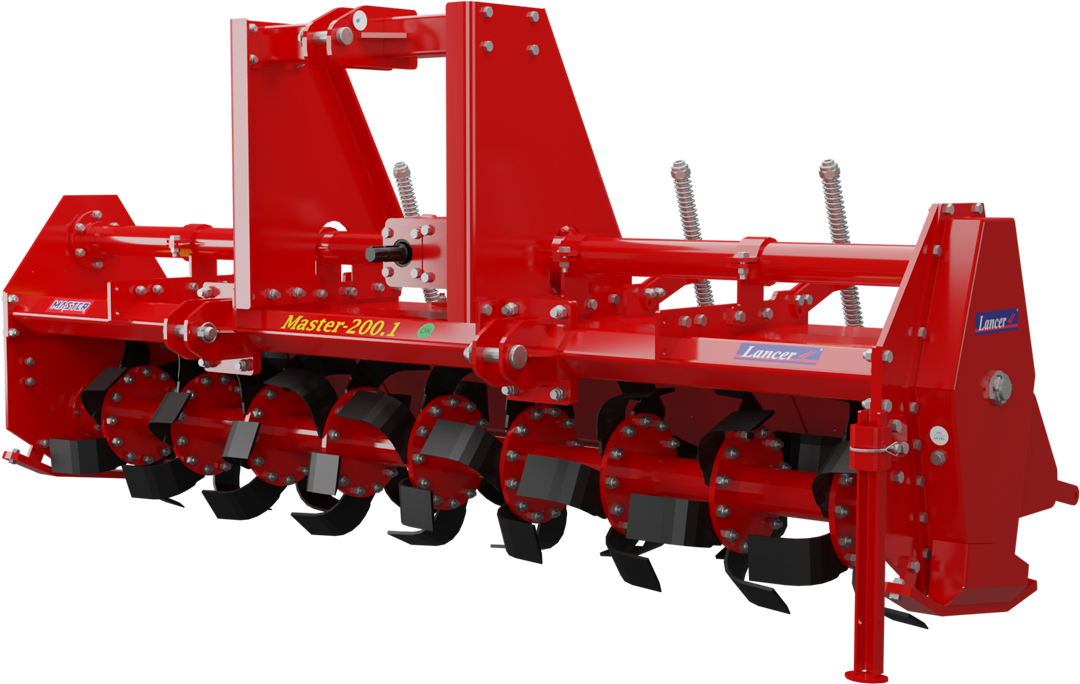

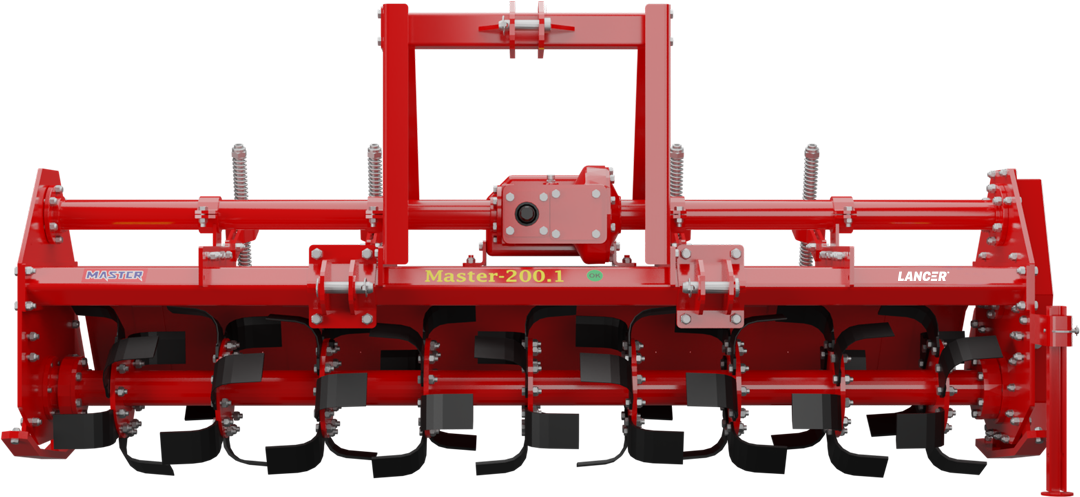

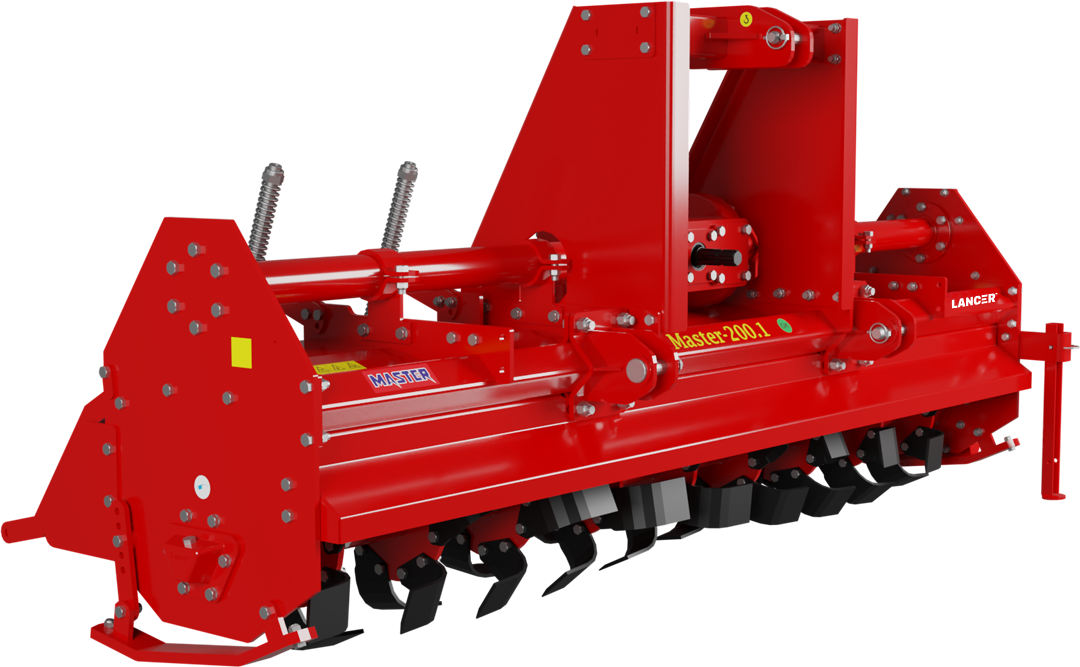

ROTARY TILLER
MASTER SERIES
Lancer Rotary Tiller (Rotavator) MASTER Series is Heavy Duty series than HD
Series. This series is introduced for stony
and hard soil, and is compactible for hard
type of soil. Heavy duty chassis and rotor
helps in better performance and
efficiency.
Standard Equipment
- Multi Speed Gear Box .
- L Type Blade, (80 x 7, ⦰ 14.5 x 57)
- Gear Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat II.
- 230 & Above Having 2 Side Support on Three point.
- Adjustable Depth Skid with Extra Strip.
- Adjustable Lifting Bracket.

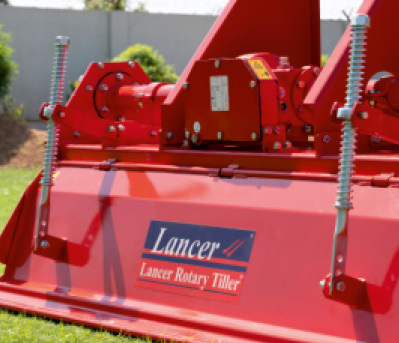

- 2 Springs on Back Guard, And 4 Springs on 200 & Above.
- Advanced Tool Kit.
- 19X21 Spur Gear, 212 Rotor RPM
- Open Rotor
Technical Chart
Features
On Request
Technical Chart
| Model | Working Width MM |
Power Requirement KW HP |
THREE POINT HITCH |
Working Depth (mm) |
No. of Blades |
Weight KG LBS |
Overall Width x Height x Length |
||
|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
|||
| Master 155 | 1550 | 29 – 75 | 40 – 100 | Cat-II | 170 | 36/42 | 485 | 1069 | 1807 x 1220 x 900 |
| Master 180 | 1750 | 33 – 75 | 45 – 100 | Cat-II | 170 | 42/48 | 505 | 1113 | 2007 x 1220 x 900 |
| Master 200 | 1950 | 37 – 75 | 50 – 100 | Cat-II | 170 | 48/54 | 555 | 1224 | 2207 x 1220 x 900 |
| Master 230 | 2285 | 44 – 75 | 60 – 100 | Cat-II | 170 | 54/60 | 627 | 1382 | 2542 x 1220 x 900 |
| Master 255 | 2545 | 52 – 75 | 70 – 100 | Cat-II | 170 | 60/66 | 670 | 1477 | 2802 x 1220 x 900 |
| Master 280 | 2795 | 60 – 75 | 80 – 100 | Cat-II | 170 | 66/72 | 708 | 1561 | 3052 x 1220 x 900 |
Features
Heavy Duty Multi Speed Gear Drive with Additional Support
Premium Blade

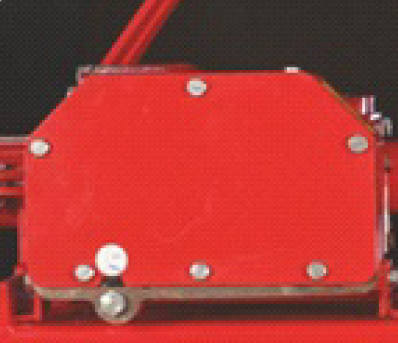

Side Protection

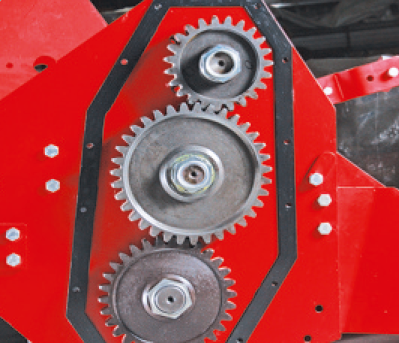

Heavy Duty Side Transmission Gear Drive with Extra Width
Heavy Duty Hull, Square Pipe and Side Plate
Extra Bend on Trailing Board

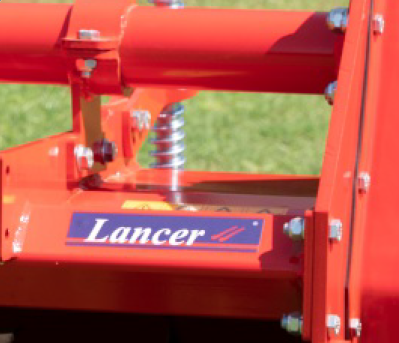

Heavy Duty Front Support with Extra Support in 230 & Above

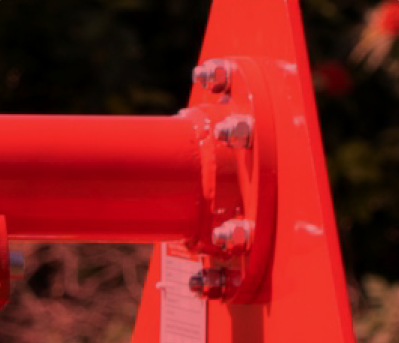

Both Side Round Flange on Gearbox Support Pipe
Mechanical Oil Seal in Rotor Hub

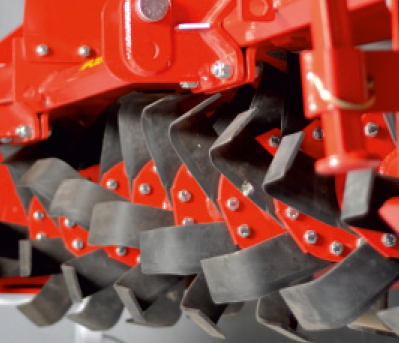

Helical Shape of Rotor Blades
On Request
- C /J/ LJF Blade
- Shear Bolt / Slip Clutch PTO Shaft
- Side Disc
- Spur Gear Pair According to RPM Chart
- Front Safety Guard
- Close Rotor
- CE PTO Guard
All Rotary Tiller
- Model : 80
- Require HP : 18 to 25
- Require KW: 13 to 19
- Model : 105-125-145-165-185-205
- Require HP :24 To 60
- Require KW : 18 to 44
- Model : 105-125-145-165-185-205
- Require HP :18 to 55
- Require KW : 30 to 41
- Model : 125-155-180-200-230-255-280
- Require HP : 30 to 85
- Require KW : 22 to 63
- Model : 200-220-240-260
- Require HP : 35 to 60
- Require KW : 26 to 44
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
- Model : 80-90-100-120
- Require HP : 10 to 25
- Require KW: 7 to 18
- Model : 155-180-200-230
- Require HP : 45 to 85
- Require KW : 33 to 63
