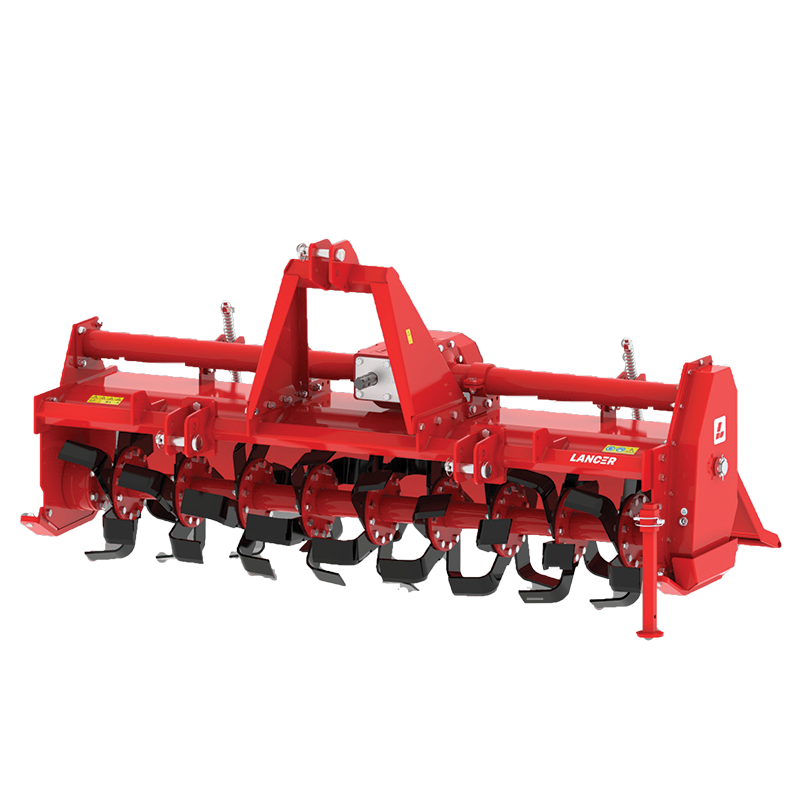

ROTARY TILLER
HL SERIES
Lancer Rotary Tiller (Rotavator) HL Series is Low weight as compared to HP Series .It is an economical series and it is highly recommending to use only for puddling activity, due to its light weight. Also this good for orchards and vineyards.
Standard Equipment
- Multi Speed Gear Box .
- C Type Blade, (70 x 7, Ø 12.5)
- Gear Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat I & II.
- Adjustable Depth Skid with Extra Strip.
- Adjustable Lifting Bracket.
- 2 Springs on Back Guard.
- Advanced Tool Kit.
- 17 X 19 Spur Gear, 202 Rotor RPM
- Open Rotor
Technical Chart
Features
On Request
Technical Chart
| Model | Working Width MM |
Power Requirement KW HP |
THREE POINT HITCH |
Working Depth (mm) |
No. of Blades |
Weight KG LBS |
Chain Drive Weight KG LBS |
Overall Width x Height x Length |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
|
 |
||||
| HL 105 | 1040 | 13 – 41 | 18 – 55 | Cat-I | 150 | 24/30 | 255 | 562 | – | – | 1190 x 1010 x 760 |
| HL 125 | 1240 | 22 – 41 | 30 – 55 | Cat-I | 150 | 36 | 275 | 606 | – | – | 1390 x 1010 x 760 |
| HL 145 | 1440 | 26 – 41 | 35 – 55 | Cat-I | 150 | 42 | 295 | 650 | – | – | 1590 x 1010 x 760 |
| HL 165 | 1640 | 30 – 41 | 40 – 55 | Cat-I | 150 | 48 | 315 | 694 | 290 | 683 | 1790 x 1010 x 760 |
| HL 185 | 1840 | 33 – 41 | 45 – 55 | Cat-II | 150 | 54 | 335 | 739 | 310 | 728 | 1990 x 1010 x 760 |
| HL 205 | 2040 | 37- 41 | 50 – 55 | Cat-II | 150 | 60 | 355 | 783 | 290 | 683 | 2190 x 1010 x 760 |
Features
Heavy Duty Multi Speed Gear Drive
Heavy Duty Side Transmission Gear Drive
Helical Shape of Rotor Blades
High Quality Mechanical Oil Seal
On Request
- L Type Blade, (70 x 7 ⦰ 12.5)
- Shear Bolt / Slip Clutch PTO Shaft
- Front safety Guard
- Spur Gear Pair According to RPM Chart
- Single speed gear box of 540 rpm only
- Close Rotor
- CE PTO Guard
- Chain Driven Side Transmission with
250 Rotor RPM.
All Rotary Tiller
- Model : 80
- Require HP : 18 to 25
- Require KW: 13 to 19
- Model : 105-125-145-165-185-205
- Require HP :24 To 60
- Require KW : 18 to 44
- Model : 105-125-145-165-185-205
- Require HP :18 to 55
- Require KW : 30 to 41
- Model : 125-155-180-200-230-255-280
- Require HP : 30 to 85
- Require KW : 22 to 63
- Model : 200-220-240-260
- Require HP : 35 to 60
- Require KW : 26 to 44
- Model : 155-180-200-230-255-280
- Require HP :40 to 90
- Require KW : 29 to 60
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
- Model : 80-90-100-120
- Require HP : 10 to 25
- Require KW: 7 to 18
- Model : 155-180-200-230
- Require HP : 45 to 85
- Require KW : 33 to 63
