ROTARY TILLER
AKSHAT SERIES

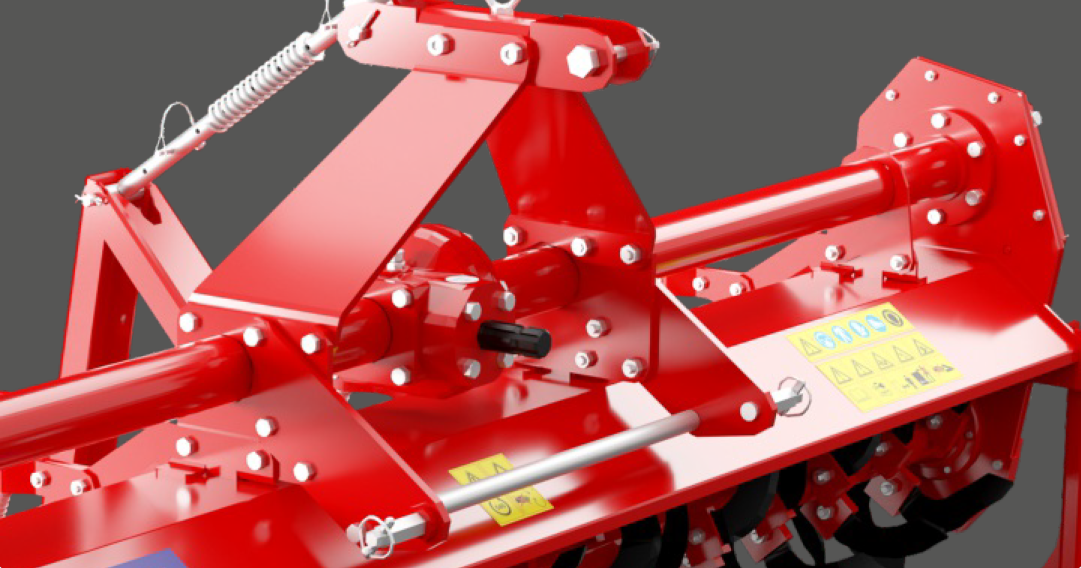

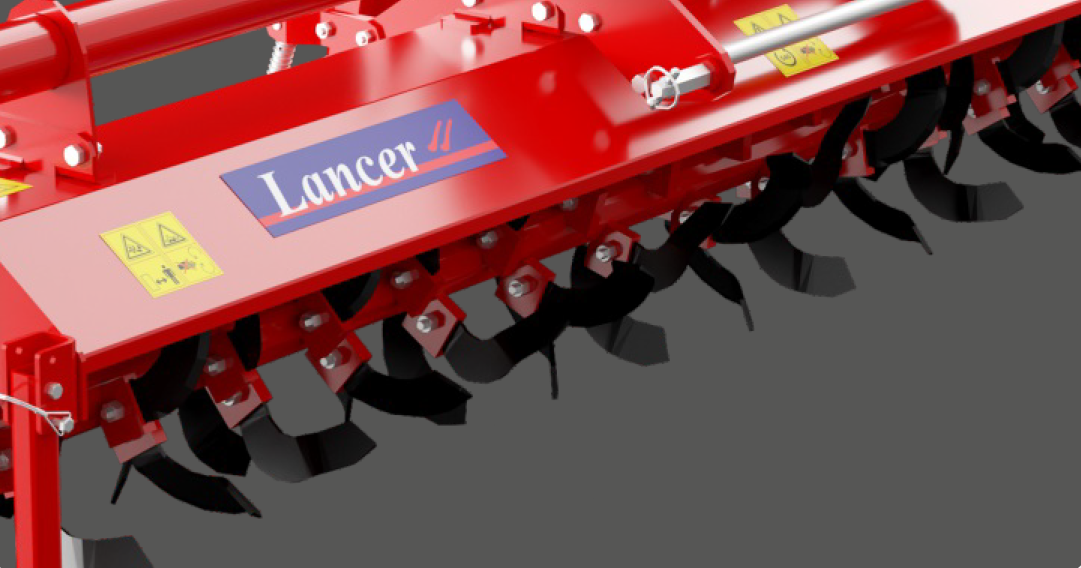

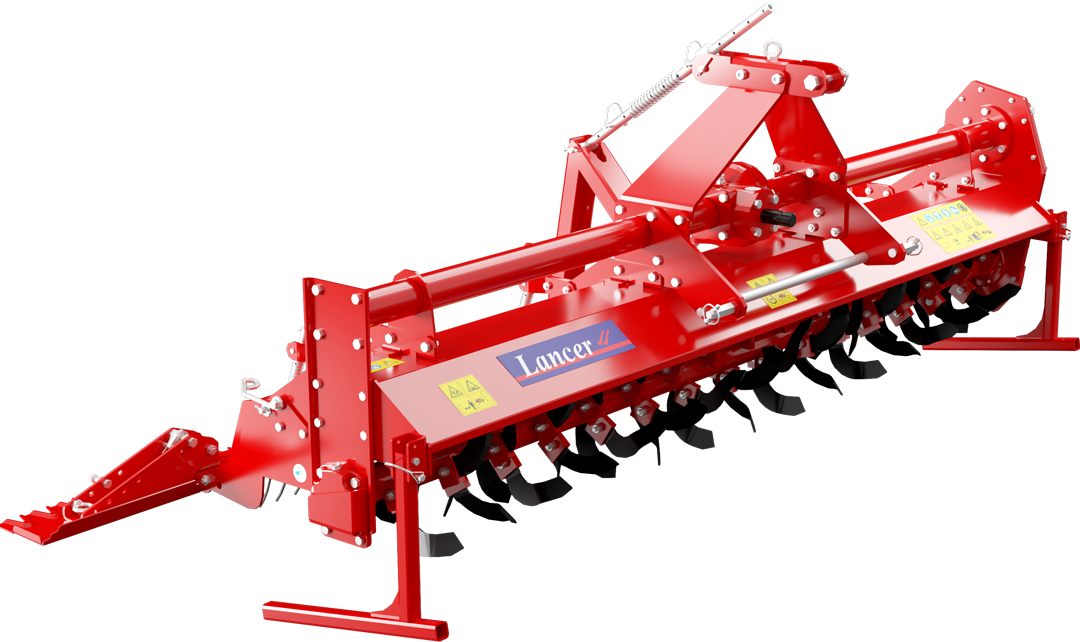

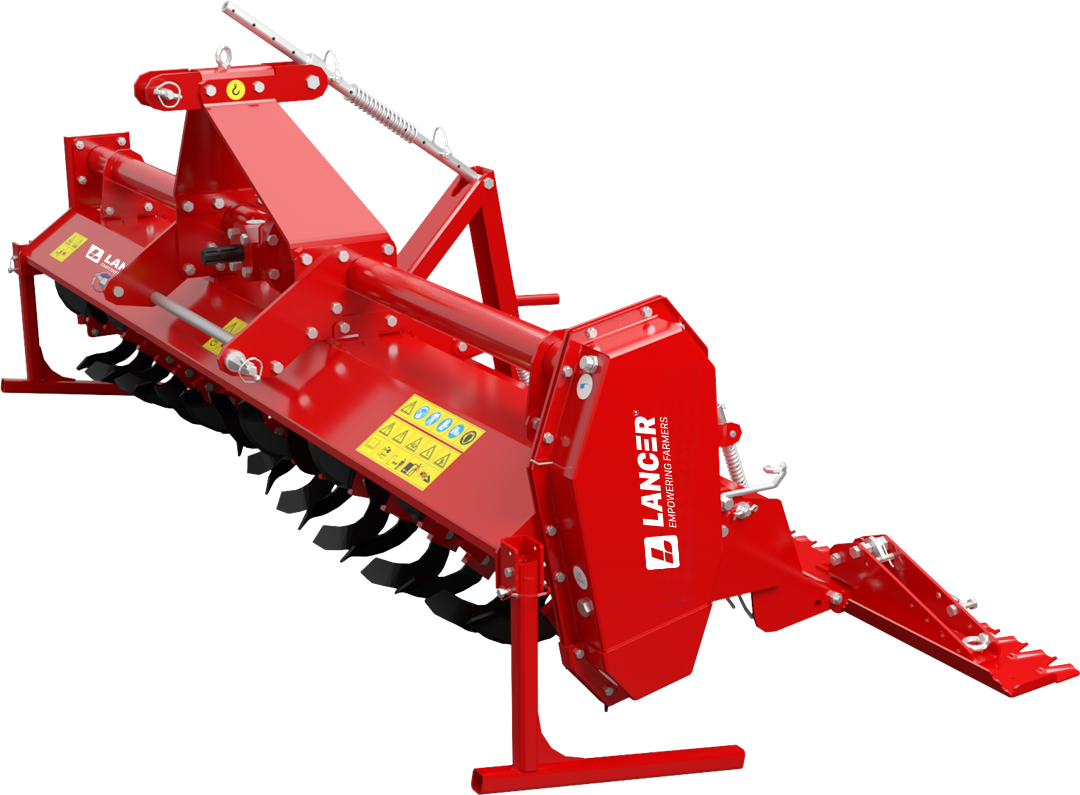

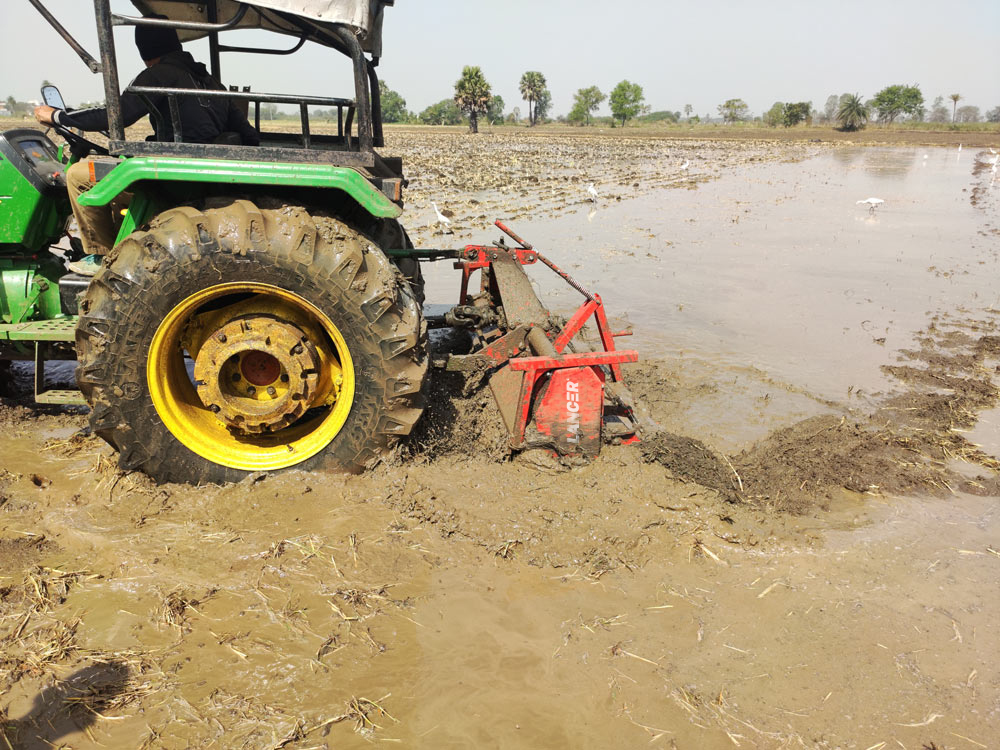

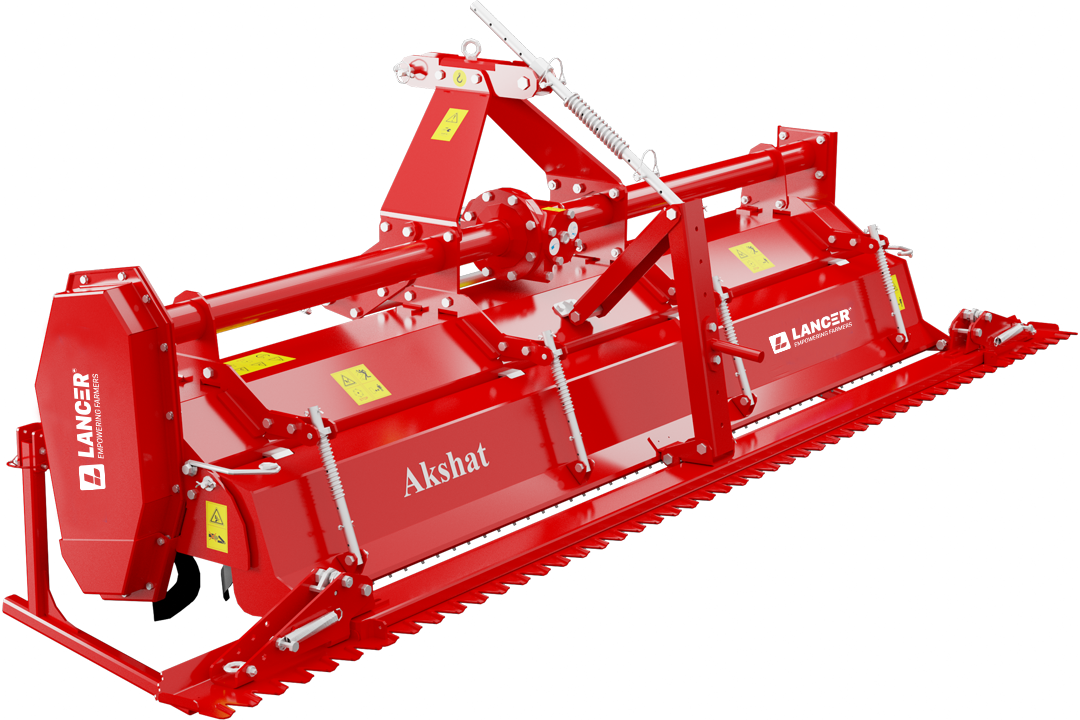

Lancer Rotary Tiller (Rotavator) AKSHAT Series is specially designed for Puddling
operation . It is a chain driven equipment,
for reduction of weight. It is designed so
that professional rice farmers will have
solution to their problems.
Standard Equipment
- Single Speed Gear Box .
- Chain Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat II.
- 4 Springs on Back Guard
- Advanced Tool Kit
- 294 Rotor RPM
- Leveling Unit
- Specially designed J/F blade
Technical Chart
Features
On Request
Technical Chart
| Model | Working Width MM |
Power Requirement KW HP |
THREE POINT HITCH |
Working Depth (mm) |
No. of Blades |
Weight KG LBS |
Overall Width x Height x Length |
||
|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
|||
| Akshat 20 | 2025 | 26 – 44 | 35 – 60 | Cat-I & II | 170 | 54 | 310 | 683 | 2080 x 1050 x 970 |
| Akshat 22 | 2180 | 30 – 44 | 40 – 60 | Cat-I & II | 170 | 58 | 325 | 717 | 2280 x 1050 x 970 |
| Akshat 24 | 2400 | 33 – 44 | 45 – 60 | Cat-I & II | 170 | 64 | 340 | 750 | 2480 x 1050 x 970 |
| Akshat 26 | 2625 | 37 – 44 | 50 – 60 | Cat-I & II | 170 | 70 | 355 | 783 | 2680 x 1050 x 970 |
Features
Spring Forks For Collecting Trash And Burry Them Under The Soil
Spring Loaded Levelling Board With Side Wings
Rigid Light Weight Structure
High Quality Mechanical Oil Seal
JF Type Blade Ensures Fine Puddling
On Request
- Shear Bolt / Slip Clutch PTO Shaft
- CE PTO Guard
All Rotary Tiller
- Model : 80
- Require HP : 18 to 25
- Require KW: 13 to 19
- Model : 105-125-145-165-185-205
- Require HP :24 To 60
- Require KW : 18 to 44
- Model : 105-125-145-165-185-205
- Require HP :18 to 55
- Require KW : 30 to 41
- Model : 125-155-180-200-230-255-280
- Require HP : 30 to 85
- Require KW : 22 to 63
- Model : 155-180-200-230-255-280
- Require HP :40 to 90
- Require KW : 29 to 60
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
- Model : 80-90-100-120
- Require HP : 10 to 25
- Require KW: 7 to 18
- Model : 155-180-200-230
- Require HP : 45 to 85
- Require KW : 33 to 63
