SUPER SEEDER
YUGAM
mp1
mp1
mp1
mp1
mp1

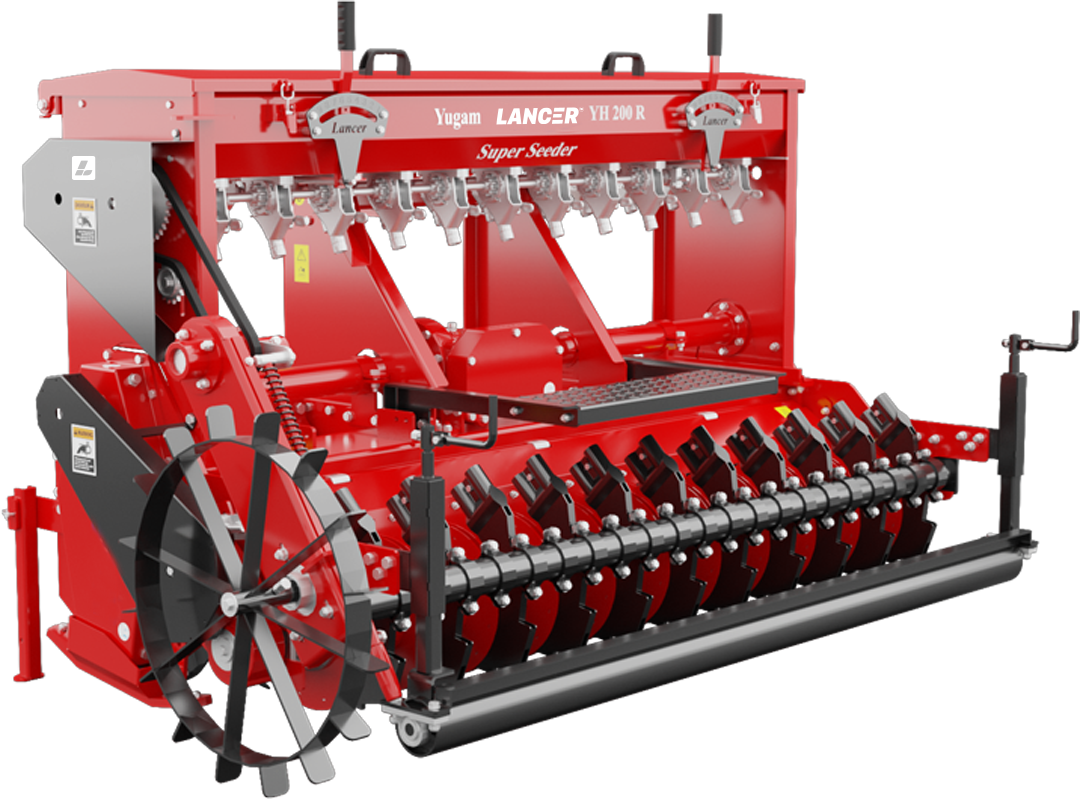

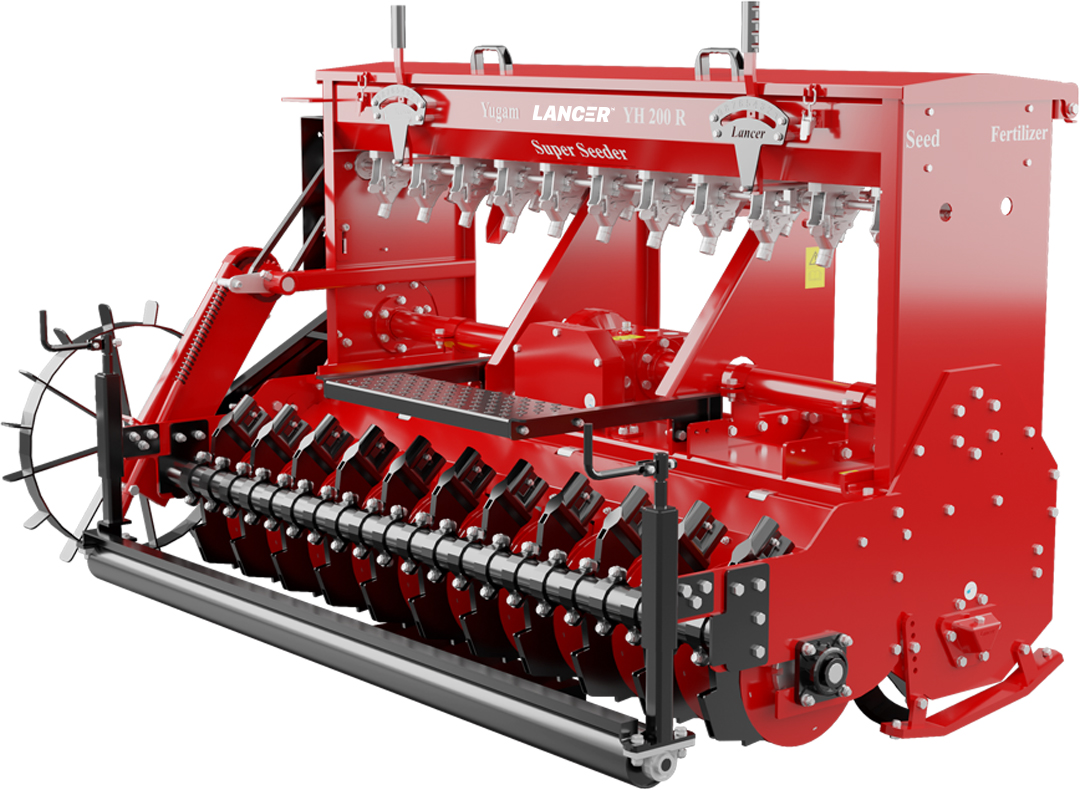

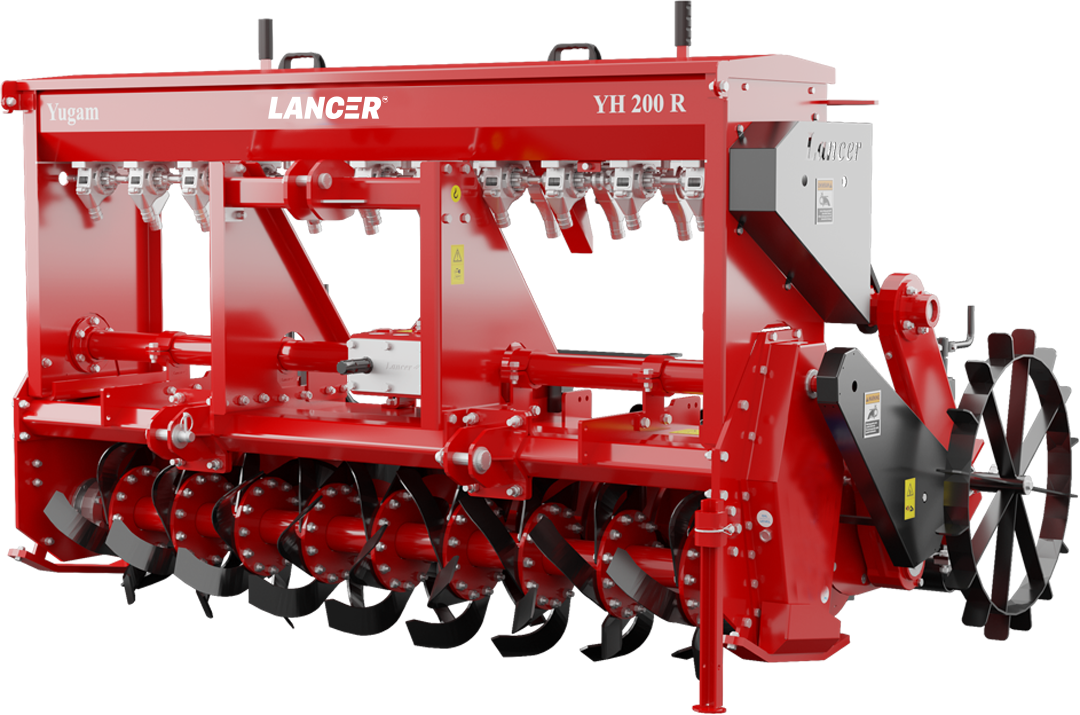

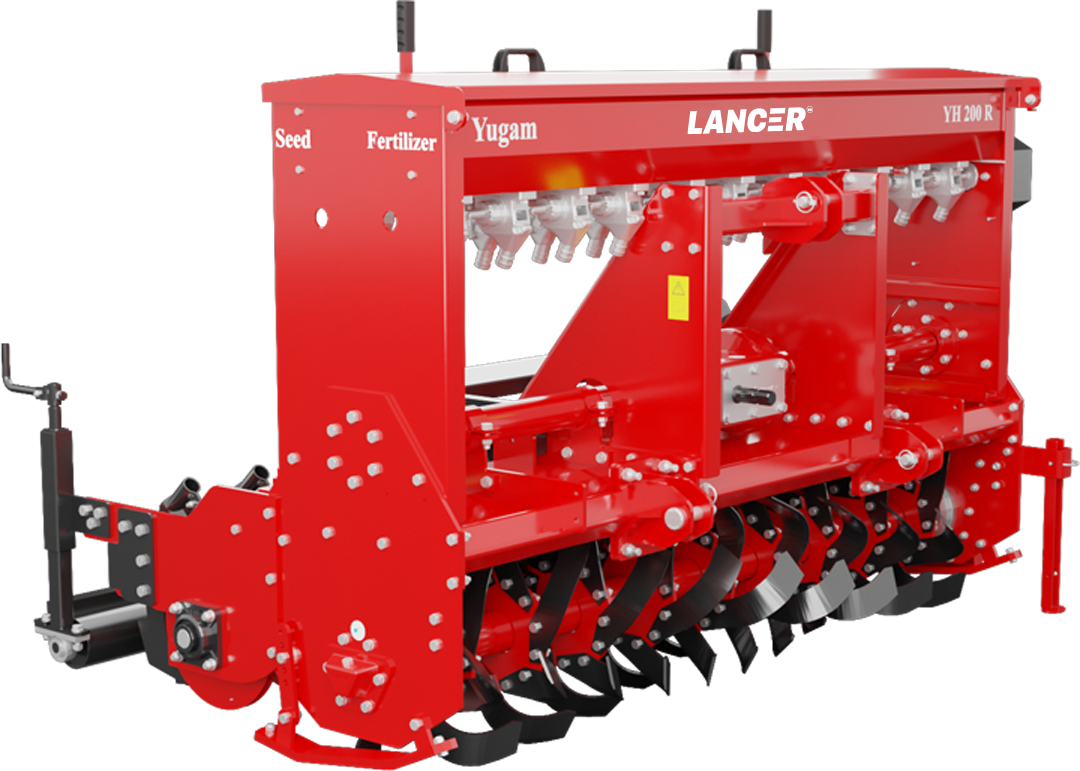

Lancer Yugam Super Seeder designed
especially for paddy-wheat cycle. It helps
in single pass solution to fulfil current
farming needs to stop crop residue
burning on large scale. YM Series is
Medium Duty series in which Seeding
system Install on success HD Series
Lancer rotary tiller and YH Series is Heavy
Duty series in which Seeding system
Install on Master Series Lancer rotary tiller
which is heavy then HD Series.
Standard Equipment
- Multi Speed Gear Box.
- LJF Type Blade
- Gear Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat II.
- Adjustable Depth Skid with Extra Strip.
- Adjustable Lifting Bracket.
- Advanced Tool Kit.
- 21X19 Spur Gear, 259 Rotor RPM
Technical Chart
Features
On Request
Technical Chart
Model No. Unit | Working Width (DIM A) MM | Overall Width (DIM B) MM | Power Requirement KW HP |
No. of Blades | Number of Seed Tines | Weight KG LBS |
|||
---|---|---|---|---|---|---|---|---|---|
Disc Type | YM 180D | 1726 | 2234 | 37 – 63 | 50 – 85 | 48 | 10 | 900 | 1984 |
YM 200D | 1925 | 2434 | 41 – 63 | 55 – 85 | 54 | 11 | 925 | 2039 | |
YM 230D | 2261 | 2770 | 44 – 63 | 60 – 85 | 66 | 13 | 950 | 2094 | |
YH 180D | 1726 | 2234 | 37 – 67 | 50 – 90 | 48 | 10 | 960 | 2116 | |
YH 200D | 1925 | 2434 | 41 – 67 | 55 – 90 | 54 | 11 | 1055 | 2326 | |
YH 230D | 2261 | 2770 | 44 – 67 | 60 – 90 | 66 | 13 | 1072 | 2363 |
Features
Adjustable seed and fertilizer drop rate
Aluminium seeder

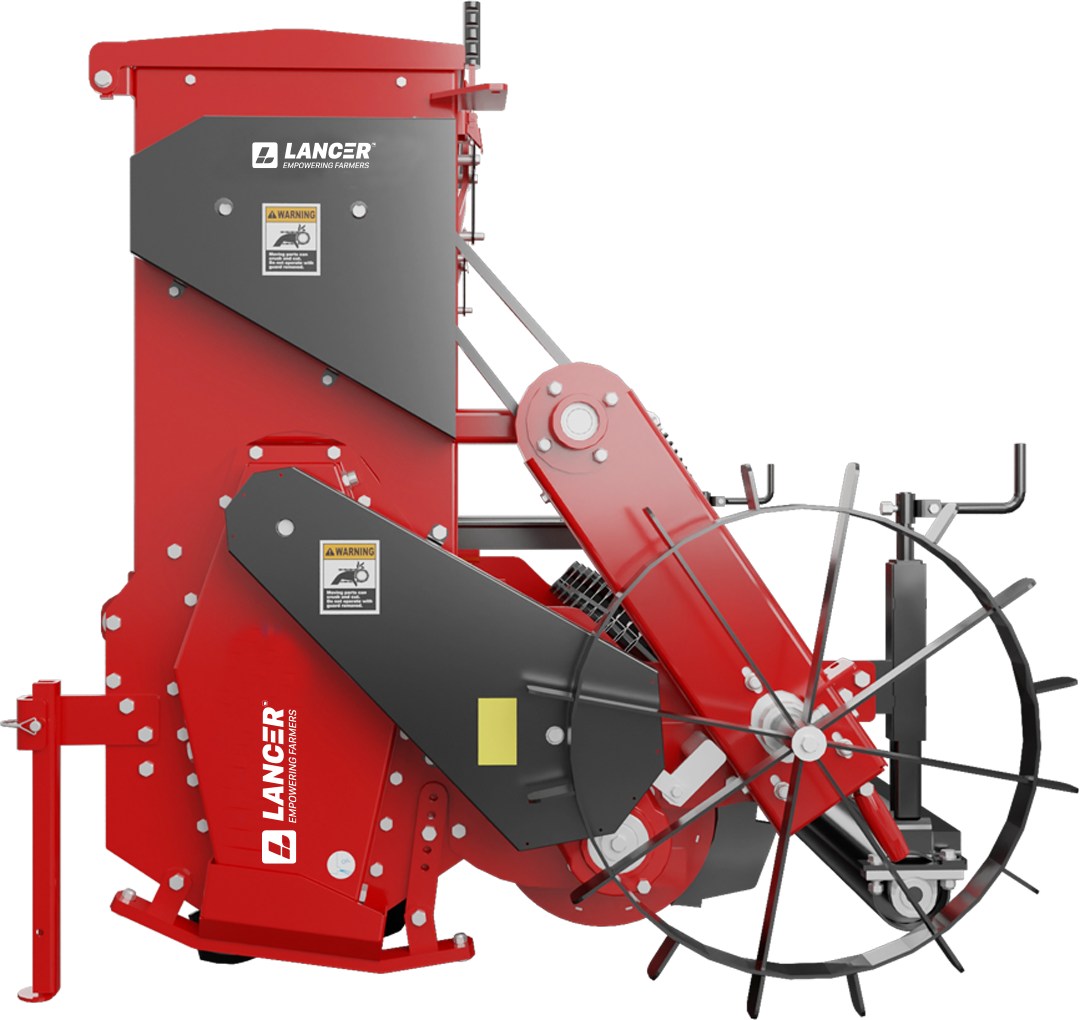

Cover for all transmission parts
Equipped with pressure roller
LJF BLADE
Powder coated machine for aesthetic look and better finish
strong and sturdy base rotavator
Super seeder components can be easily removed, so that only rotavator can be used.
On Request
- Option for roller & disc type super seeder.
- Shear Bolt / Slip Clutch PTO Shaft
- Side Disc
- Front Safety Guard
- Spur Gear Pair According to RPM Chart
