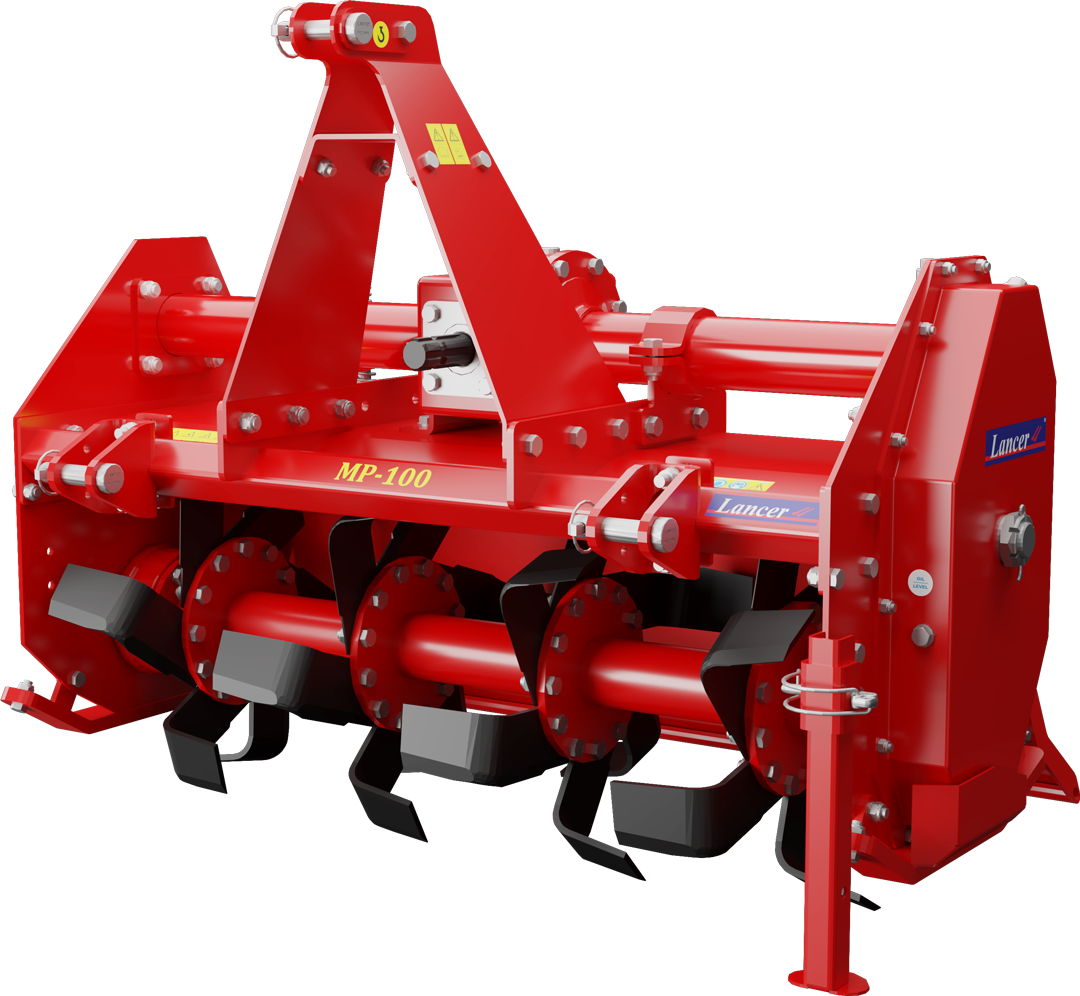

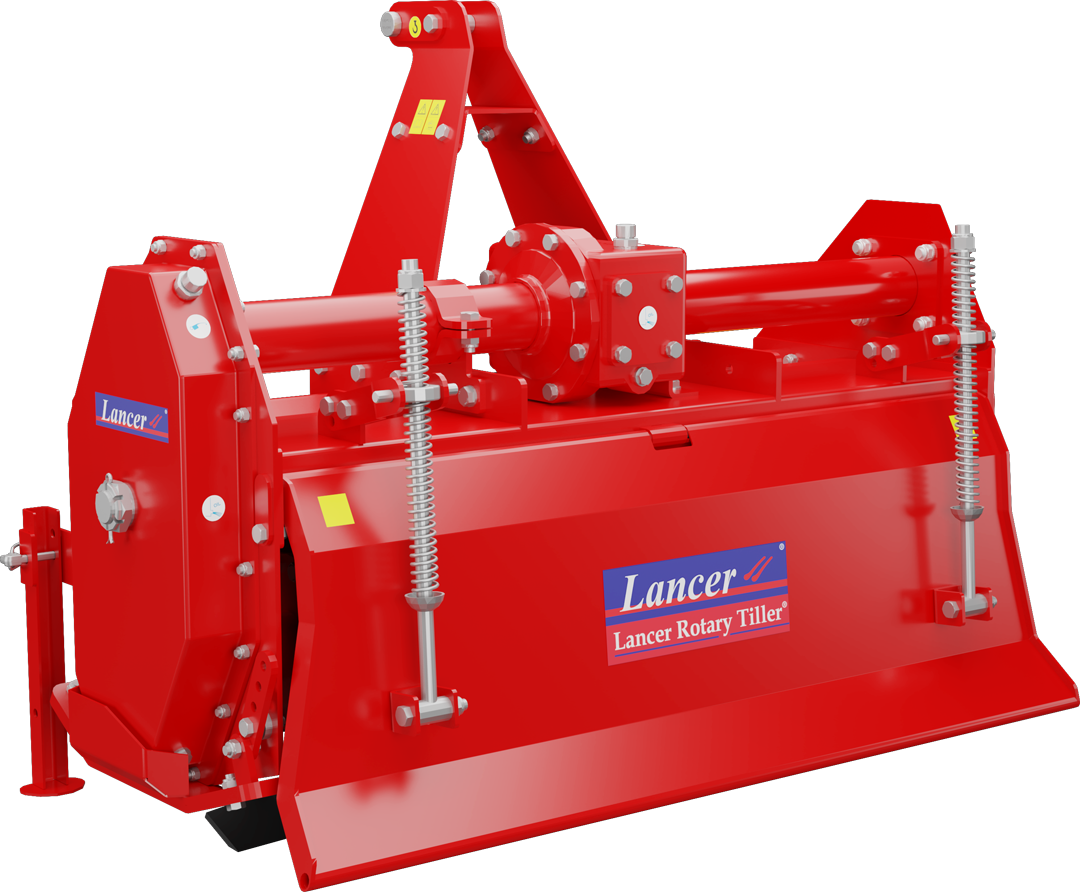

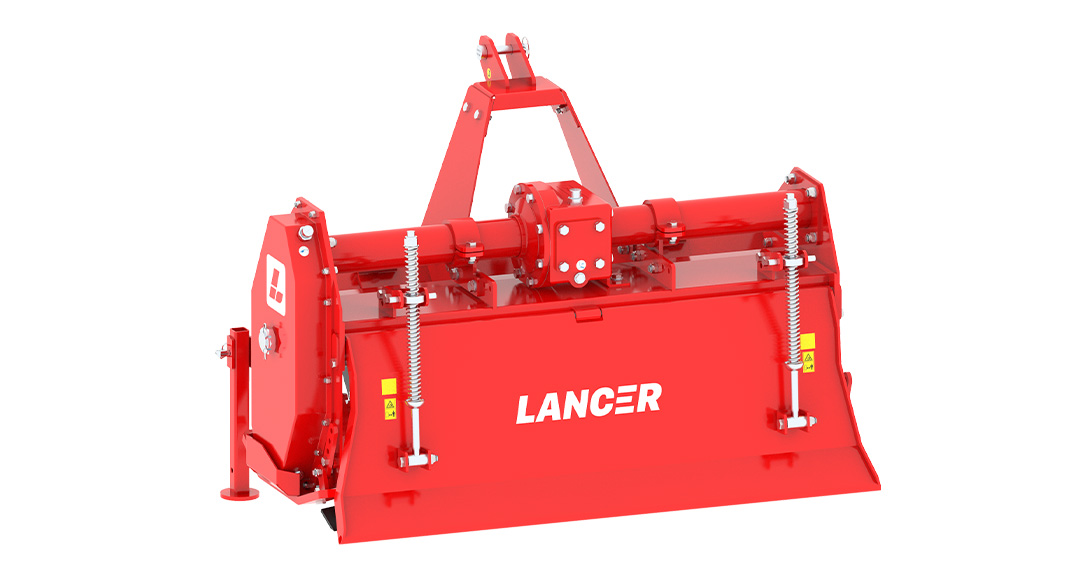

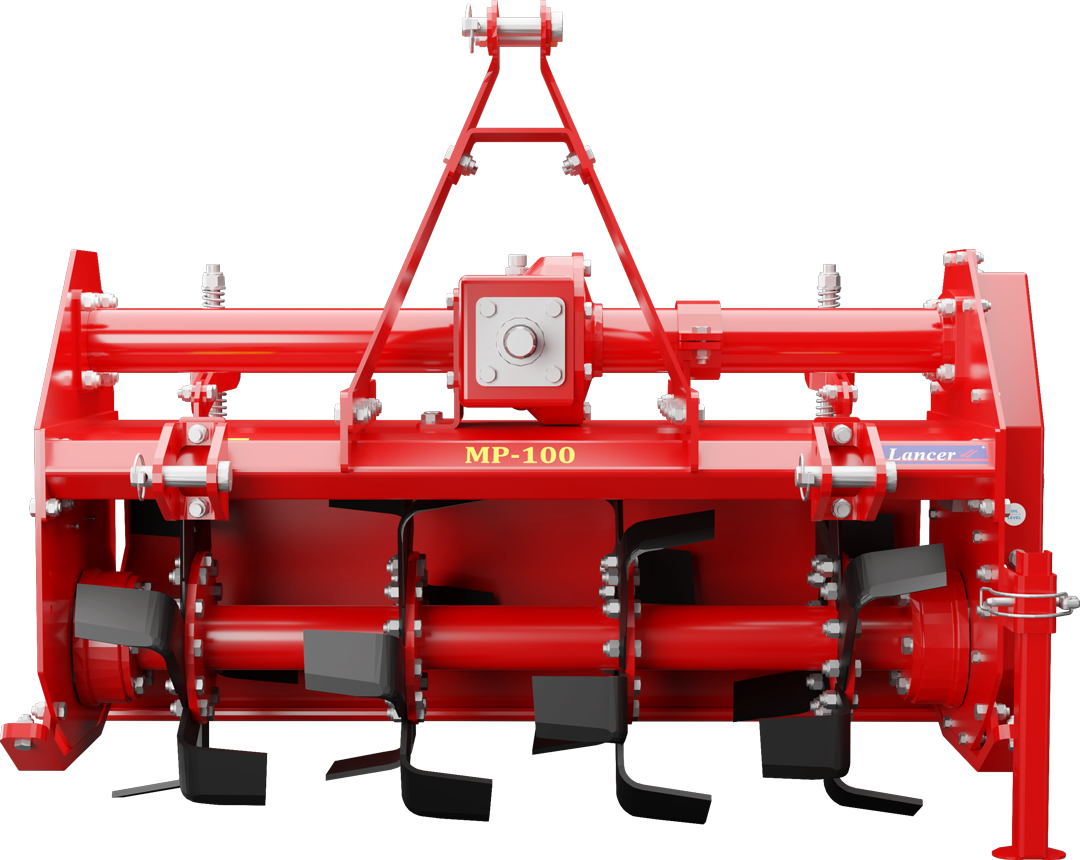

ROTARY TILLER
MP SERIES
Lancer Rotary Tiller (Rotavator) MP Series is a compact and economical option for mini series HP Tractors and for a small or hobby farmers. Also it is used in inter-row cultivation in many areas. Many farmers also use this machine in small paddy fields.
Standard Equipment
- Single Speed Gear Box ( For 540 RPM Only ).
- C Type Blade, (70 x 7, Ø 12.5)
- Gear Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat I.
- Adjustable Depth Skid with Extra Strip.
- Adjustable Lifting Bracket.
- 216 Rotor RPM.
- Open Rotor
Technical Chart
Features
On Request
Technical Chart
| Model | Working Width MM |
Power Requirement KW HP |
THREE POINT HITCH |
Working Depth (mm) |
No. of Blades |
Weight KG LBS |
Overall Width x Height x Length |
||
|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
|||
| MP 80 | 800 | 7 – 18 | 10 – 25 | Cat-I | 125* | 18 | 175 | 386 | 950 x 870 x 640 |
| MP 90 | 900 | 8 – 18 | 12 -25 | Cat-I | 125* | 24 | 185 | 408 | 1050 x 870 x 640 |
| MP 100 | 1000 | 11 – 18 | 15 – 25 | Cat-I | 125* | 20/24 | 195 | 430 | 1170 x 870 x 640 |
| MP 120 | 1200 | 14 – 18 | 20 -25 | Cat-I | 125* | 24/30 | 215 | 474 | 1370 x 870 x 640 |
Features

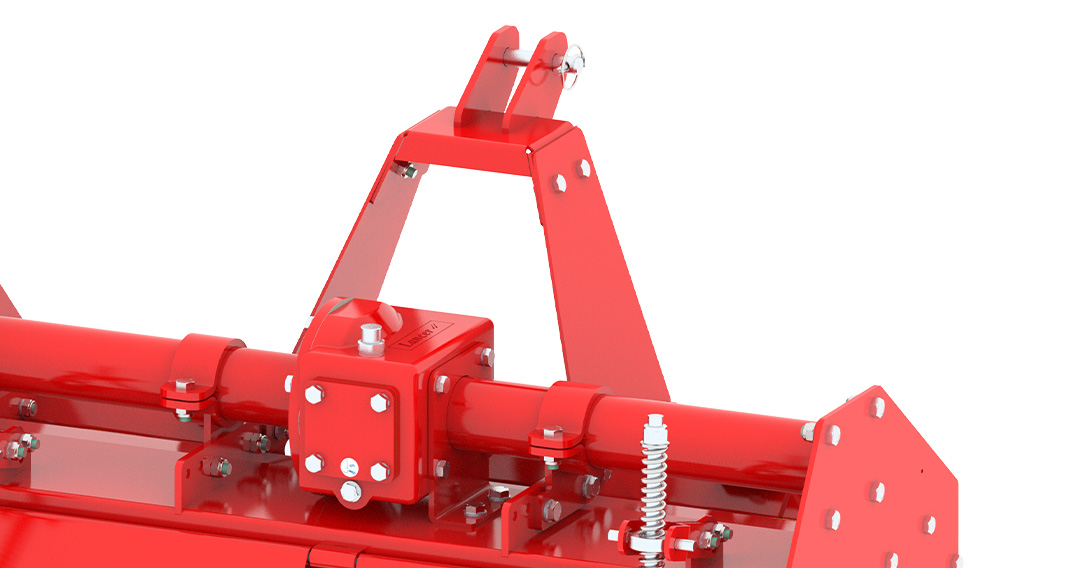

Heavy Duty Single Speed Gear Drive
Heavy Duty Side Transmission Gear Drive
Helical Shape of Rotor Blades
On Request
- L Type Blade, (70 x 7, ⦰ 12.5 )
- Shear Bolt / Slip Clutch PTO Shaft
- Close Rotor
- CE PTO Guard

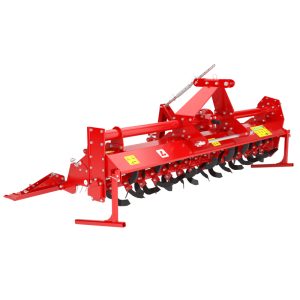

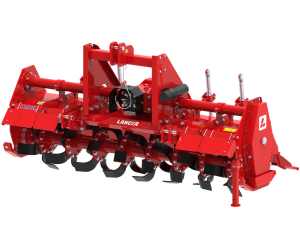

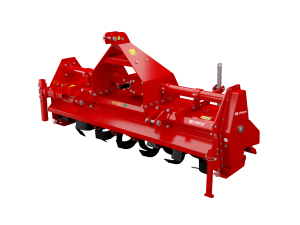

All Rotary Tiller
