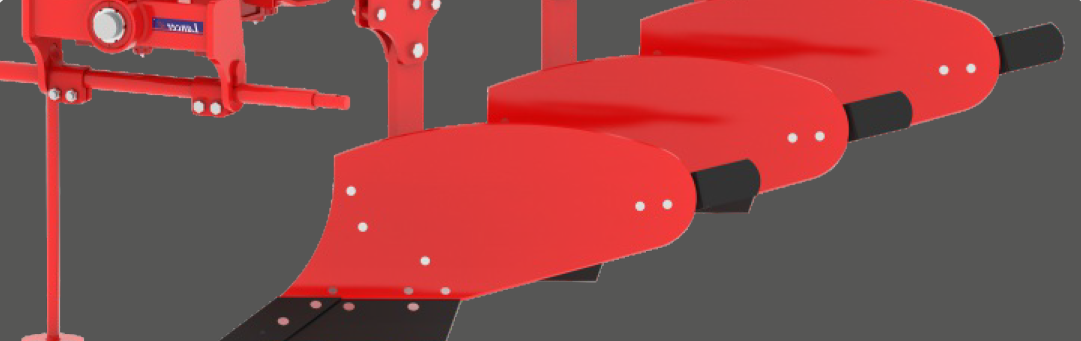

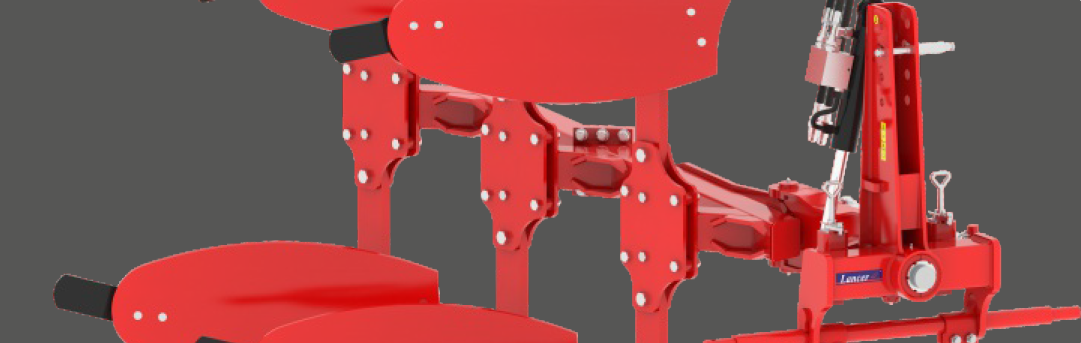

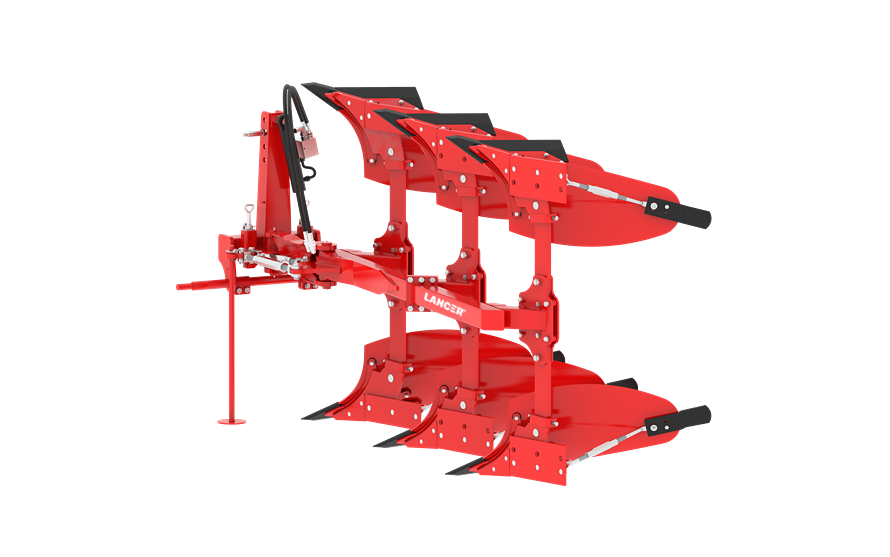

PLOUGH – DHANUSH
DH SERIES
Lancer Dhanush DH series is a Hydraulic
Reversible Plough is range of double &
Triple Furrow, which can be coupled with
70 to 90 HP tractors. It is mainly made from
virgin material with rigid structure, high
strength material in tines and furrow with
perfect mold to reduce load on tractor and
ploughing made easy for all farmers.
Standard Equipment
- Plough Side Hydraulic Unit.
- Advanced Tool Kit.
- Three Point Hitch Cat II.
Technical Chart
Features
On Request
Technical Chart
| Model No. | Unit | DH 2 MB | DH 3 MB(2+1) | |||||
|---|---|---|---|---|---|---|---|---|
| Power Requirement |  |
HP KW |
50 – 75 37 – 56 |
55 – 75 41 – 56 |
60 – 75 45 – 56 |
65 – 90 49 – 67 |
70 – 90 52 – 67 |
75 – 90 56 – 67 |
| Require Tractor Rear Tyre |  |
Inch | 16.9.28 | 16.9.28 | 16.9.28 | 16.9.28 | 16.9.28 | 16.9.28 |
| Working width |  |
mm Inch |
530 21 |
635 25 |
735 29 |
800 31.5 |
950 37.5 |
1100 43.5 |
| Tines Thickness |  |
mm | 25 | 25 | 25 | 25 | 25 | 25 |
| Mould Board Thickness |  |
mm | 8 | 8 | 8 | 8 | 8 | 8 |
| Shear Length |  |
Inch | 16 | 16 | 16 | 16 | 16 | 16 |
| Shear Thickness |  |
mm | 12 | 12 | 12 | 12 | 12 | 12 |
| Weight |  |
Kg. lbs. |
410 904 |
550 1213 |
||||
Features
High Quality Hydraulic Unit
High Quality Bearing and Seal on Main Shaft.
Premium Shear and Shear Bar for Longer Life..
Working Width adjustable as per Soil Conditions.
Strong and reliable Design.
On Request
- Kachhua Shear Blade.
- Tractor side Distribution Kit
- Can be converted into 2MB plough
Plough – Dhanush
- Model : 232-235-236-243-245-247-250
- Require HP: 30 to 60
- Require KW: 22 to 45
