JUPITER
JMH SERIES

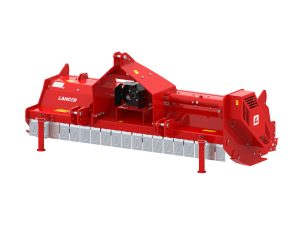

Lancer Jupiter JMH Series / Mulcher / Shredder / Flail Mower JMH Series is Hydraulic shide shift of JM Series which is ideal for intensive mulching of grass, shrubs, tree branches up to 6 CM in diametre. This series is designed for Vineyards and Orchards, Olive groves after pruning . It can work with 40 to 60 HP Tractors .
Standard Equipment
- Electronically Balanced Rotor.
- Three Point Hitch Cat 2 with Hydraulic Side Shift
- Gearbox with Free Wheel 540 RPM
- 4 XPB Side Belt Transmission
- Rear Roller Adjustable in 3 Positions.
- Front Protection with Flaps
- Back Door Easy to Open & Close (4 Adjustible Position Locking)
- Side Skids Adjustable in 2 Positions.
- Counter Knives.
- Advanced Tool Kit
Technical Chart
Features
On Request
Technical Chart
| Model No. |
Working Width (MM) |
Power Requirement KW HP |
No. of Blade |
No of Hammer |
Weight Kg LBS |
Overall Dimension ( MM ) | Offset MM | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W mm inch |
D mm inch |
H mm inch |
||||||||||||
 |
 |
 |
 |
 |
 |
 |
||||||||
| JMH 160 | 1600 | 29 – 45 | 40 – 60 | 32 + 16 | 16 | 556 | 1126 | 1810 | 71 | 1230 | 48 | 990 | 39 | 1008 |
| JMH 180 | 1800 | 29 – 45 | 40 – 60 | 40 + 20 | 20 | 590 | 1201 | 2010 | 79 | 1230 | 48 | 990 | 39 | 1108 |
| JMH 200 | 2000 | 33 – 45 | 45 – 60 | 44 + 22 | 22 | 625 | 1279 | 2210 | 87 | 1230 | 48 | 990 | 39 | 1208 |
| JMH 220 | 2200 | 37 – 45 | 50 – 60 | 48 + 24 | 24 | 660 | 1356 | 2410 | 95 | 1230 | 48 | 990 | 39 | 1308 |
| JMH 240 | 2400 | 41 – 45 | 55 – 60 | 48 + 24 | 24 | 695 | 1532 | 2610 | 103 | 1230 | 48 | 990 | 39 | 1408 |
| JMH 160 S | 1600 | 29 – 45 | 40 – 60 | 32 + 16 | 16 | 550 | 1213 | 1810 | 71 | 1230 | 48 | 990 | 39 | 1408 |
| JMH 180 S | 1800 | 29 – 45 | 40 – 60 | 40 + 20 | 20 | 585 | 1201 | 2010 | 79 | 1230 | 48 | 990 | 39 | 1408 |
| JMH 200 S | 2000 | 33 – 45 | 40 – 60 | 44 + 22 | 22 | 620 | 1279 | 2210 | 87 | 1230 | 48 | 990 | 39 | 1408 |
| JMH 220 S | 2200 | 37 – 45 | 50 – 60 | 48 + 24 | 24 | 655 | 1356 | 2410 | 95 | 1230 | 48 | 990 | 39 | 1408 |
| JMH 240 S | 2400 | 41 – 45 | 55 – 60 | 48 + 24 | 24 | 690 | 1521 | 2610 | 103 | 1230 | 48 | 990 | 39 | 1408 |
Features
Hydraulic Offset – allows the operator to control offset positioning without leaving the tractor’s cab
Height Adjustable Rear Roller
Advanced Protection Flap
External Belt Tensioning Quick and Simple
Easy Back Door Opening
Maximum back door opening
Adjustable Side Skids
Easy Greasing Points
Counter Knives
Mechanical Side Shift
On Request
- Y-Blades or Hammers
- Rakes
- Rear Rubber Flaps
- Mechanical Side Shift
- CE PTO Guard
- Front Rubber Flaps
- Front Protection Chains
- Extra Wear – Resistant Frame Sheet
